About

stm32f4-emu runs real compiled STM32F407 firmware — not a reimplementation — by pairing a CPU emulator with a model of the on-chip peripherals. Boot a binary, watch its UART, poke GPIO and registers, drive it from scripts, a web UI, or an MCP client.

The emulator console running the blinky firmware: UART terminal printing tick lines, firmware and machine-state panels — The console running blinky — this is what the emulator looks like in use.

How it fits together

Three parts, one width-correct call per register access.

CPU — a Rust WASM-native Thumb-2 interpreter with exact Cortex-M exception entry/return, including the VFPv4-SP FPU. Reset vector, SP/PC, and NVIC handling follow the Cortex-M programming model.
Peripheral model — a Rust crate compiled to WASM. 41 modules (RCC, GPIO, USART, TIM, NVIC/SysTick/EXTI, ETH+DMA, I2C, SPI/I2S, CAN, LTDC, DCMI, RTC, QSPI, ADC, FLASH …) answer periph_read/periph_write.
JS driver — steps the core (emu.step(budget)), drains UART, services ETH TX/RX and DMA, drives virtual devices. Guest IRQs are delivered inline when the firmware opts in (enable_irqs/irq_eth/freertos/lowpower); polling firmware runs with delivery off.

Peripherals modeled: 41 / 41
Firmware builds: 223
Chips: F401 · F411 · F407 · VE · F429
DOOM: 35 fps

Full design: docs/architecture.md. Per-peripheral matrix: docs/peripherals.md.

What runs on it

A few of the 223 builds.

Firmware	What it shows
`eth_http`	DHCP → TCP handshake → HTTP GET/response, through a real gVisor stack or canned netsim.
`blinky`	Bare-metal blink + UART banner; toggles PA5 so the GPIO panel updates live.
`can_test`	Two-node CAN bus: loopback TX, arbitration (lower ID wins), filter-gated delivery.
`freertos_test`	FreeRTOS scheduler: TIM3 ISR → `xSemaphoreGiveFromISR` → PendSV context switch.
`rtc_test`	DS3231 I2C RTC: set time, read-back, temperature.
`fpu_test`	VFPv4-SP FPU: real GCC hard-float output with bit-exact result checks.
`mpu_test`	MPU enforcement: regions + MemManage faults with exact MMFSR/MMFAR.
`usb_cdc_test`	USB OTG FS device: CDC-ACM enumeration + bulk echo via a scripted host.
`oled_test` / `tft_test` / `buzzer_test`	Virtual peripherals over I2C/SPI/TIM (SSD1306, ILI9341, PWM).
`doom`	doomgeneric F407 port — DOOM 1 shareware in a Web Worker. Open doom.html.

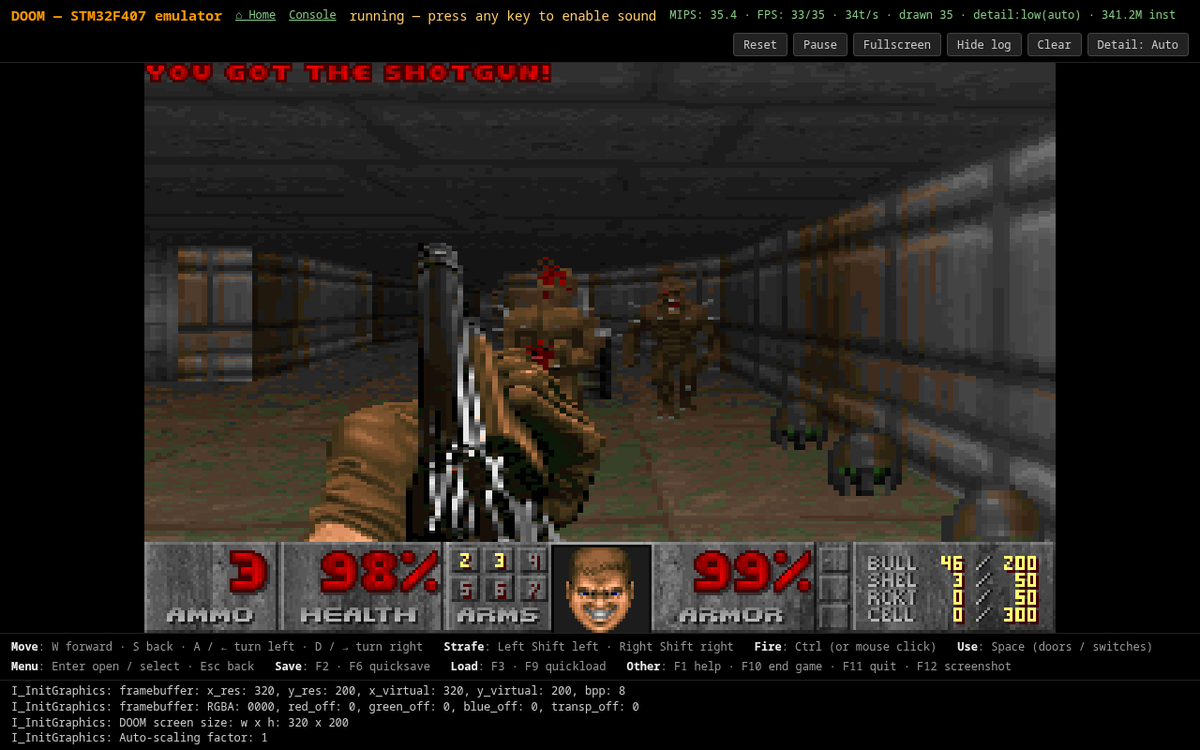

DOOM 1 shareware running on the emulated STM32F407: shotgun in a corridor, YOU GOT THE SHOTGUN banner, status bar with ammo health armor — DOOM on the emulated F407 — framebuffer, audio, savegames, all in the tab.

Use it

Three doors.

Headless CLI

# boot a firmware and stream its UART to stdout
node cli.mjs firmware.bin --inst 20000000

# load an ELF, trace peripheral register accesses to stderr
node cli.mjs app.elf --verbose

node cli.mjs --help      # usage + all flags
node cli.mjs --version   # version

Flags: --inst <N> instruction budget, --format auto|bin|hex|elf, --verbose register trace, --help, --version.

Browser console

# from the repo root
python3 -m http.server 8123 --directory site
# then open http://localhost:8123/console.html

Pick a firmware preset, click Run, watch the UART terminal — plus a live GPIO grid, key peripheral registers, device panels, and real Ethernet with a gateway URL.

Node library

// npm install stm32f4-emu  (or use the local checkout)
import { createSTM32F407 } from 'stm32f4-emu';
import { readFileSync } from 'node:fs';

const fw = new Uint8Array(readFileSync('firmware.bin'));
const emu = await createSTM32F407({ firmware: fw });

for (let i = 0; i < 200; i++) {
  emu.step(100000);                 // run up to 100k instructions
  const uart = emu.drainUart();
  if (uart.length) process.stdout.write(uart.toString());
}
console.log('PC=', emu.read32(0x08000000 + 4).toString(16));

Key handle methods: step(n), run(n), drainUart(), read32/write32/read16/write16/read8/write8, close(). TypeScript types ship in index.d.ts.

MCP server

# optional peer dep:
npm install @modelcontextprotocol/sdk zod
npx stm32f4-mcp          # speaks MCP over stdio

Exposes load/step/UART/pins/ADC/registers/memory/component tools to an MCP client (Claude Code, Claude Desktop). See docs/mcp.md.

Learn more

docs/usage.md — CLI, browser, and library usage, config, env vars, building.
docs/architecture.md — how the pieces fit together.
docs/peripherals.md — every peripheral and how complete it is.
docs/components.md — attach virtual LEDs/buttons/sensors to pins.
docs/mcp.md — drive the emulator from an LLM via MCP.
CHANGELOG.md — releases and features.
